Logo 15-word challenge

Math = Art!
Logo 15-word challenge
winners
other entries

The challenge was announced and judged by Keith Enevoldsen, spring 1997: "Write a Logo one-liner using 15 or fewer words, not counting square brackets and parentheses, to produce the most beautiful, complex, and interesting picture."
The one-line codes work as written in MSWLogo and UCBLogo. MicroWorlds sometimes requires slightly different code, as noted below in the Winners' section, and cannot run code using the command "px" (which reverses the color).
Click here for information on downloading free versions of Logo.

The Grand Prize (the Golden Turtle)


Five Rose or Starfish, by Paolo Passaro, Italy (and Julie Clune, Australia) - only 8 words!!
repeat 1800 [fd 10 rt repcount + .1]
dotimes [i 1800] [fd 10 rt :i + .1] (MicroWorlds)
Please see the project details for the project background, extra code, and more graphics.

The "Pure Logo" Prize
Dahlia, by David Eisenstat, U.S. (14 words)
repeat 8 [rt 45 repeat 6 [repeat 90 [fd 2 rt 2] rt 90]] The 6 can be replaced with 1 to 7 for other flowers.
For numbers greater than 7, the patterns repeat.
This will work without modification in absolutely all Logo implementations.

The "Complexity" Prize
Layers, by Alessio Plebe, Italy (15 words)
for [i 0 420] [seth :i repeat :i [fd 2 rt 1] pu home pd]
dotimes [i 420] [seth :i repeat :i [fd 2 rt 1] pu home pd] (MicroWorlds) This is slow, but it has very beautiful and complex moire patterns. If your screen is small, let it wrap. The moire effect isn't as strong if you try to shrink it.

The "Classic Math" Prize
Lissajous variations, by Samuel Kilchenmann, Switzerland (15 words)
repeat 360 [setxy (sin(2 * repcount)) * 150 (sin(3 * repcount)) * 150]
repeat 360 [setxy (sin(89 * repcount)) * 150 (sin(179 * repcount)) * 150]
repeat 360 [setxy (sin(254 * repcount)) * 150 (sin(201 * repcount)) * 150]
repeat 360 [setxy (sin(327 * repcount)) * 150 (sin(66 * repcount)) * 150] dotimes [i 360] [setpos list (sin(254 * :i)) * 150 (sin(201 * :i)) * 150] (MicroWorlds)
Change the factors to get lots of different designs.

The "Random" Prize
Pencil Sketch, by Andrzej Baczynski (shortened by Yehuda Katz), 15 words
repeat 5000 [run list item sum 1 random 4 [fd bk rt lt] random 10] This looks remarkably like a person is sketching with a pencil. It looks even more like a pencil sketch if you use PENREVERSE (PX) mode.

The "Polygon" Prize
Penta-octagon, by M.H. Elhefni, Egypt (15 words)
for [l 10 80 5] [repeat 5 [repeat 8 [fd :l rt 45] rt 72]
dotimes [i 15] [repeat 5 [repeat 8 [fd (10 + (:i * 5)) rt 45] rt 72] (MicroWorlds)
Beautiful "telescoping" polygons. Change the numbers to get more designs.
(See the "octa-octagon" below.)


The "Animation" Prize
Circus (Ring variation 2), by Olga Tuzova, Russia (14 words)
[The object above spins around and around. This screenshot shows one instant of the animation.] px setpensize [100 100] repeat 1000 [repeat 72 [fd 20 rt 10] rt 90]
This requires PENREVERSE (PX) and a big pen.
This cheerful entry reminds me of circus jugglers and clowns doing cartwheels.
other ring variations

The "Subtle Effects" Prize
Radar, by Zippi Katz, Israel (11 words)
px repeat 1000000 [fd 40 fd 40 bk 80 rt 1] This requires PENREVERSE (PX).
It looks like a weather radar. [It is in constant motion.]
The really interesting part is that the effect is entirely destroyed
if you replace "fd 40 fd 40" by "fd 80".

The "Surprise" Prize
Square Spiral, by Yehuda Katz, Israel (9 words)
px for [x 1 1000000] [fd :x rt 90] This requires PENREVERSE (PX).
It seems simple, but it has a suprising effect, based on WRAP mode and PX mode. The effect will depend on your screen size. The effect is strikingly bold with a square screen and more complex with a non-square screen. In MSW Logo, you can set the screen size.
Example: c:\\logo\\logo -h 480 -w 640

Index of Other Contest Entries
slalom scrolls rose variations low growing
hairy star lissajous sun Don Quixote
jaggy star times hexagon variations ellipse
bullring shell pentahexagons polygon variations
random lines hypercube pentagon rotating circle
square spiral variations scribble moire disappearing triangles
sine wave fan flower fireworks smiling fish
radar variations current peltonwheel bird's wings
brownian motion elliptical spiral spirals butterfly
feathers tree growth rings gilly flower fish
spiral cloudy night growing scrolls block
ring variations simple flower mountains octastar spiral
cubism clock head pentastar spiral
Milky Way self-replicating eye designs
inky dots spinning wheels

Note: The first four "entries" shown here were among some samples provided by Keith Enevoldsen in announcing the Logo 15-word challenge.

Slalom Scrolls
for [i 0 2000] [fd 5 rt (90 * sin :i)]
index

Hairy Star
for [i 0 4700] [fd 10 rt (180 * sin (:i * :i))]
index

Jaggy Star
for [i 0 2200] [fd (25 * sin :i) rt (:i * :i)]
index

Bullring
for [i 0 1002] [fd 8 seth (360 * (power :i 3) / 1002)]
REFERENCES
"Another Fine Math You've Got Me Into..." by Ian Stewart contains an interesting chapter about curves like these. The "bullring" is from Ian Stewart's book.
index

Random Lines, by Michael Tempel, U.S. (9 words)
repeat random 1000 [fd random 1000 rt random 360]
(This usually produces Jackson Pollacks, but there is a chance that it will produce a Michelangelo.) Depending on what random numbers the computer chooses, you may get something like one of the three images above.

index

Square Spiral variation 1, by Keith Enevoldsen, U.S. (9 words)
saved in early stage
px for[x 1 1000000] [fd :x rt 89.99]


Square Spiral variation 2, by Bill Kerr, Australia (14 words or 8 words)
make "x 1 repeat 150 [fd :x rt 89 make "x :x + 1]
for [x 1 150] [fd :x rt 89]

index

Sine Wave, by Shachar Katz, Israel (15 words)
sety 1000 home setx 1000 for [x -180 180] [setxy :x 70 * sin :x]

index

Radar variation 1, by Bill Kerr, Australia (12 words)
repeat 3600 [px fd 80 fd 0 bk 80 lt random 360]


Radar variation 2, by Keith Enevoldsen, U.S. (7 words)
px repeat 10000 [fd 200 rt 179]

index

Brownian Motion, by Erez Katz, Israel (14 words)
repeat 10000 [fd 3 * (-1 + random 2) rt 90 * random 4]
(Maybe it should be named urban sprawl.)

index

Feathers, by Marian Rosen, U.S. (13 words)
repeat 12 [repeat random 50 [fd 100 bk 95 rt 2] rt 180]


Feathers variation 1, by Keith Enevoldsen, U.S. (13 words)
repeat 50 [repeat random 100 [fd 300 bk 295 rt 2] rt 180]

index

Spiral, by Olga Tuzova, Russia (11 words)
reset for [i 0.01 4 0.05] [repeat 180 [fd :i rt 1]]

index

Ring, by Olga Tuzova, Russia (10 words)
px setpensize [20 20] repeat 100000 [fd 2 rt 2]
(Looks like a caterpillar in motion.)


Ring variation 1, by Keith Enevoldsen, U.S. (10 words)
px setpensize [200 200] repeat 36 [fd 20 rt 10]

index

Cubism (Ring variation 3), by Yehuda Katz, Israel (15 words)
px for [x 10 200] [setpensize se :x :x repeat 36 [fd 20 rt 15]]

index

Milky Way, by Olga Tuzova, Russia (15 words)
setsc [0 0 0] px setpensize [10 10] repeat 100000 [fd 10 rt random 360]

index

Inky Dots, by Olga Tuzova, Russia (14 words)
setpensize [10 10] repeat 10000 [pu fd 15 pd fd 0 rt random 360]


Inky Dots variation 1, by Yehuda Katz, Israel (15 words)
px setpensize [10 10] repeat 10000 [pu fd 15 pd fd 0 rt random 360]

index

Rose, by M.H. Elhefni, Egypt (shortened by Yehuda Katz, Israel, 13 words)
for [t 0 180 3] [seth :t fd 200 * sin :t home]


Rose variation 1, by Keith Enevoldsen, U.S. (14 words)
for [t 0 180] [seth :t fd 200 * sin :t*7 home]


Rose variation 2, by M.H. Elhefni, Egypt (13 words)
repeat 9 [for [i 10 200 10] [fd :i bk :i rt 2]]

index

Lissajous, by M.H. Elhefni, Egypt (15 words)
for [t 0 360] [setxy 200 * sin :t 200 * cos :t * 5]
index

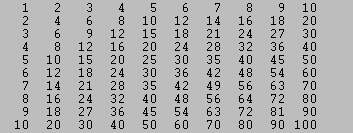

Times, by Yehuda Katz, Israel (14 words)
for [i 1 10] [repeat 10 [type form repcount * :i 4 0] pr[]]
(This one uses the text screen.)
index

Shell, by Vered Katz, Israel (14 words)
for [scr .2 1.75 .05] [setscrunch 1 :scr repeat 360 [fd :scr rt 1]]

index

Hypercube, by Frank Caggiano, U.S. (12 words)
repeat 8 [repeat 4 [rt 90 fd 100] bk 100 lt 45]

index

Scribble, by Keith Enevoldsen, U.S. (15 words)
repeat 1000 [fd 3 rt random int 20 * (1 + sin (10 * repcount))]

index

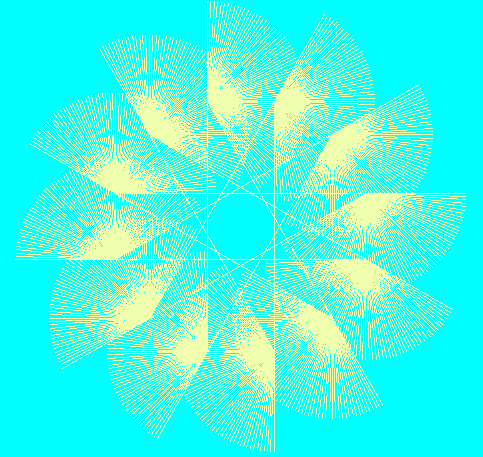

Fan Flower, by Keith Enevoldsen, U.S. (12 words)
repeat 12 [repeat 75 [fd 100 bk 100 rt 2] fd 250]

index

Current, by George Mills, U.S. (10 words)
repeat 5100 [fd 10 rt arctan (remainder repcount 100) / 100]

index

Elliptical Spiral, by George Mills, U.S. (15 words)
reset repeat 3600 [setxy repcount / 10 * sin repcount repcount/20 * cos repcount]

index

Tree Growth Rings, by George Mills, U.S. (13 words)
repeat 36000 [setxy (sqrt repcount) * sin repcount (sqrt repcount) * cos repcount]

index

Cloudy Night, by George Mills, U.S. (8 words)
repeat 6000 [fd repcount rt remainder repcount 360]

index

Simple Flower, by Julie Clune, Australia (13 words)
repeat 11 [for [i 0 359] [fd 1 rt (sin :i / 2)]]
(Why does the line match up exactly after drawing 11 petals?)

index

Seconds, by Zippi Katz, Israel (15 words)
px st setpensize [5 5] repeat 1000 [fd 100 wait 40 bk 100 rt 6] (Clever use of the triangular turtle. The second hand continually moves as it is drawn, erased, and repositioned.)

Face, by Yehuda Katz, Israel (15 words)
pu rt 30 repeat 12 [fd 110 pd label repcount pu bk 110 rt 30] (Try this: first run Face, then, without clearing the screen, run Seconds.)

index
Self-Replicating, by Brian Harvey, U.S. (13 words) invoke [[x] print (list "invoke :x :x)] [[x] print (list "invoke :x :x)]
(This non-graphics one-liner prints itself.)

index

Basic Spinning Wheel variations 1-3, by Greg Simkins' 6th grade class, U.S. (15 words)
define "spin [[ ][repeat 15 [fd 100 bk 100 rt 5]]] repeat 25 [spin fd 100]
define "spin [[ ][repeat 15 [fd 100 bk 95 rt 10]]] repeat 12 [spin fd 100]
pu setpos [-400 0] pd
define "spin [[ ][repeat 25 [fd 100 bk 100 rt 15]]] repeat 24 [spin fd 100]
Basic Spinning Wheel variations 1-3, shortened by Yehuda Katz, Israel (12 words)
repeat 25 [repeat 15 [fd 100 bk 100 rt 5] fd 100]
repeat 12 [repeat 15 [fd 100 bk 95 rt 10] fd 100]
pu setpos [-400 0] pd
repeat 24 [repeat 25 [fd 100 bk 100 rt 15] fd 100]

index

Low, by Alessio Plebe, Italy (15 words)
pu setx -100 pd
for [i 0 32] [repeat :i [fd :i rt 358 / :i] bk sqrt :i]
index

Sun, by Alessio Plebe, Italy (13 words)
repeat 2000 [pu home seth random 361 fd 40 pd fd random 200]
index

Hexagon, by M.H. Elhefni, Egypt (15 words)
for [i 100 30 -50] [repeat 6 [repeat 6 [fd :i lt 60] lt 60]]
(Quasi-fractal.)

Hexagon variation 1, by Yehuda Katz, Israel (15 words)
for [size 20 80 20] [repeat 6 [repeat 6 [fd :size rt 60] rt 60]]


Hexagon variation 2, by M.H. Elhefni, Egypt (15 words)
for [i 100 10 -5] [repeat 6 [repeat 6 [fd :i lt 60] lt 60]]

index

Pentahexagon, by M.H. Elhefni, Egypt (shortened by Keith Enevoldsen, U.S.) (10 words)
repeat 5 [repeat 6 [fd 100 lt 72] lt 144]


Pentahexagon variation 1, by M.H. Elhefni, Egypt (15 words)
for [i 100 10 -5] [repeat 5 [repeat 6 [fd :i lt 72] lt 144]]

index

Pentagon, by M.H. Elhefni, Egypt (15 words)
for [i 100 10 -10] [repeat 5 [repeat 5 [fd :i lt 72] lt 72]]
index

Moire, by Yehuda Katz, Israel (9 words)
window repeat 180 [fd 500 bk 500 rt 2]

index

Fireworks, by M.H. Elhefni, Egypt (14 words)
for [i 0 220 0.0001*sin :i] [fd :i bk :i rt 10]
index

Peltonwheel, by M.H. Elhefni, Egypt (14 words)
for [i 0 220 sin :i/1000] [fd :i bk :i rt 51]
index

Spirals, by M.H. Elhefni, Egypt (14 words)
for [i 0 220 sin :i/1000] [fd :i bk :i rt 41]
index

Gillyflower, by Alessio Plebe, Italy (15 words)
repeat 450 [make "a 73 * sin repcount fd :a rt 88 * cos :a]
index

Growing Scrolls variation 1, by Keith Enevoldsen, U.S. (12 words)
for [i -1 4] [repeat 720 [fd power 2 :i rt repcount]]


Growing Scrolls variation 2, by Keith Enevoldsen, U.S. (14 words)
for [i -1 15] [repeat 720 [fd power 1.2 :i rt repcount] lt 45]


Growing Scrolls variation 3, by M.H. Elhefni, Egypt (11 words)
for [i 1 14 6] [repeat 720 [fd :i rt repcount]]
index

Mountains, by Keith Enevoldsen, U.S. (12 words)
repeat 2000 [setxy (repcount * 2) (ycor - 2 + random 5)]

index

Head, by Keith Enevoldsen, U.S. (15 words)
repeat 38 [fd 5 rt 10] setx 55 setx 27 setxy 20 -10 setx 27
repeat 38 [fd 5 rt 10] setx 55 setx 27 setpos [20 -10] setx 27 (MicroWorlds)

index

Eye, by Paolo Passaro, Italy (12 words)
repeat 1800 [fd ln repcount bk 10*sin repcount rt 10]

index

Growing, by Paolo Passaro, Italy (13 words)
repeat 360 [repeat repcount [repeat repcount [fd repcount lt 15] home] lt 1]
(You may want to stop it before it is done.)

index

Don Quixote, by Paolo Passaro, Italy (14 words)
px repeat 360 [repeat repcount [repeat repcount [fd repcount lt 15] home] lt 1]
(Read the book.)

index

Ellipse, by Paolo Passaro, Italy (14 words)
repeat 360 [rt repcount fd 1 lt repcount * 2 fd 0.5 rt repcount]
(The eccentricity is e=0.5. If e=0, you have a circle and if e < 0 or e > 0 you have an ellipse, horizontal or vertical.
See Abelson-Di Sessa: "Turtle geometry".)

index

Polygon variations 1-3, by Paolo Passaro, Italy (14 words)
repeat 4 [repeat 30 [lt 90 fd 4 rt 90 fd 4] rt 90]
repeat 4 [repeat 20 [lt 160 fd 20 rt 160 fd 20] rt 90]
repeat 8 [repeat 20 [lt 170 fd 20 rt 170 fd 20] rt 45]

index

Rotating Circle, by M.H. Elhefni, Egypt (11 words)
px repeat 4000 [repeat 34 [fd 12 rt 10] rt 90]
index

Disappearing Triangles, by Olga Tuzova, Russia (14 words)
px repeat 360 [setx 200 * (cos repcount) sety xcor * (cos repcount) home]

index

Smiling Fish, by Yehuda Katz, Israel (15 words)
pu setx -157 pd
for [t -315 315] [setxy :t * sin :t :t * cos 2 * :t]
(It looks better like this:
for [t -315 315] [setxy :t * sin :t .5 * :t * cos 2 * :t]
as pictured above, but then it is too many words.)

index

Bird's Wings, by Olga Tuzova, Russia (15 words)
repeat 360 [setx 200 * (sin repcount) sety xcor * (cos 2 * repcount) home]

index

Butterfly, by Olga Tuzova, Russia (15 words)
repeat 360 [setx 200 * (sin 2 * repcount) sety xcor * (cos repcount) home]

index

Fish, by Olga Tuzova, Russia (15 words)
repeat 360 [setx 200 * (cos 2 * repcount) sety xcor * (cos repcount) home]

index

Block, by de Walt Smith, U.S. (12 words)
repeat 25726 [setpos se (50 - random 100) (50 - random 100)]
index

Octa-star Spiral, by M.H. Elhefni, Egypt (15 words)
for [l 0 120 4] [repeat 8 [fd :l rt 135] fd :l rt 30]
index

Penta-star Spiral, 15W, M.H. Elhefni, Egypt (15 words)
for [l 0 95 3] [repeat 5 [fd :l rt 144] fd :l rt 30]
index

Designs 1-5, by Alex Mylonas' class, Greece (12 - 14 words)
repeat 36 [fd 60 rt 61 bk 80 lt 41 fd 85 rt 41]
repeat 16 [fd 85 lt 60 fd 107 bk 72 lt 53 fd 74]
repeat 100 [fd 5 + repcount rt 45 fd 10 + repcount rt 60]
repeat 36 [repeat 36 [fd 10 rt 10] fd repcount rt 90 fd repcount]
repeat 18 [repeat 5 [rt 40 fd 100 rt 120] rt 20]



Growing Scrolls variation 4, by M.H. Elhefni, Egypt (13 words)
for [i 1 18 2] [repeat 720 [fd :i rt repcount] lt 45]
Diposting oleh di

Tidak ada komentar:

Posting Komentar

Langganan: Posting Komentar (Atom)
